brown & miller racing solutions
PROGold Polyester Braid
PROGold AC Crimped Fittings
PROGold Polyester Braid
Very Lightweight & Ultimate Flexibility
• Fuel, Oil, Water and Air Systems • Compatible with Virtually All Fluids • Breather and Vent Lines • Factory Built Assemblies are ALL Pressure Tested • Use with ProGold AC, AR or PL Fittings.
Specifications:
• Innercore: Convoluted PTFE with Integral Glass Fiber reinforcement and Static Dissipating Liner*
• Braid: Polyester
• Operating Temperature: -54°C to +125°C (-67°F to +257°F)
PROGold Aramid Braid
PROGold AC Crimped Fittings
PROGold Polyester Braid
Very Lightweight & Ultimate Flexibility
Applications: • Compatible with Virtually All Fluids
• Fuel, Oil, Water and Air Systems • Factory Built Assemblies are ALL Pressure Tested
• Fuel - Including Internal Fuel Cell Lines • Use with ProGold AC, AR or PL Fittings.
• Applications Requiring Lightweight, Durability and High Temperature • Harsh and Agressive Environments Specifications:
• Innercore: Convoluted PTFE with Static Dissipating Liner
• Braid: Para Aramid
• Operating Temperature: -54°C to +150°C (-67°F to +302°F)
PROGold AC Crimped Fittings
PROGold AC Crimped Fittings
PROGold AC Crimped Fittings

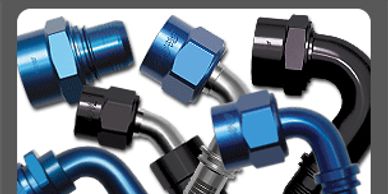

The Ultimate Fitting
The one-piece billet construction makes PROGold fittings the ultimate race fitting. With no welded, glued or brazed joints, the result is a strong, reliable fitting of the best quality available. The constant internal radius provides maximum flow rates with no necked down restrictions.
Attachment Types
PROGold fittings are available in lightweight Crimp (AC) and Reusable (AR) styles. For sizes -24 through -32, our unique Press Lock (PL) fittings provide a reliable high pressure seal.
Wide Variety
With a nearly unlimited range of styles, you should be able to find a fitting that suits your application. These include AN fittings, Metric, Wiggins, Port Thread, Plug-In 'O' Ring, , Quick Disconnect, Fuel Logs and any angle you need. If you can’t find the fitting you want, tell us and we’ll make it.
Protection Sleeves
Protection Sleeves
PROGold AC Crimped Fittings

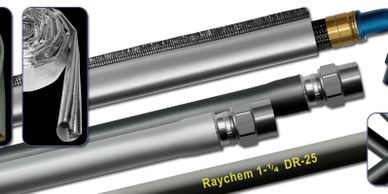

At Brown & Miller Racing Solutions we offer a range of sleeving products to ensure the in-service life of the hose is not affected by mechanical abrasion or areas of excessively high temperature. These products can be applied to the full length of the hose assembly or used to protect specific parts of the assembly such as areas close to exhaust headers.
Adapters
Protection Sleeves
Couplings

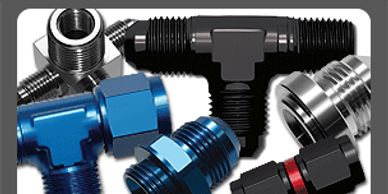

At Brown & Miller Racing Solutions we offer a comprehensive range of off-the-shelf adapters.
To complement this we are increasingly called upon to use our knowledge and expertise to custom design adapter solutions, working in partnership with designers and specifiers for race teams and engine builders.
We manufacture anything from one-offs to multiple runs. As part of the design process we can also "print" a solid model.
Couplings
Protection Sleeves
Couplings
BMRS offers a comprehensive range of quick release couplings.
Applications include - shock absorbers, brake and hydraulic lines, quick-release couplings for fuel lines (filling, venting, sampling, safety break-away, etc.), lubrication and coolants.
STÄUBLI connectors are designed for safety and optimum lightweight. They are available in aluminum and titanium.
Both SPH and SPT couplings non-drip, clean break feature guarantees the integrity of fluids and makes a secure connection. FIA approved.
