RINEHARTS PERFORMANCE INC.

Autometer data acquisition

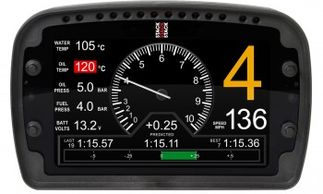

STACK LCD COMPETITION DASH LOGGER # ST9918

STACK LCD COMPETITION DASH LOGGER # ST9918

STACK LCD COMPETITION DASH LOGGER # ST9918

Due to the complexity of this product, this product ships in 4 weeks from the date of purchase.

The Stack Colour LCD Motorsport Display is the next evolution of driver communication and data acquisition. The carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20 g of continuous vibration and 50 g of shock. Our 7" LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is configurable to your individual specifications. The system will accommodate two programmable data bus channels (I CAN and I serial) in conjunction with discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1,000 Hz and the internal memory allows for appropriate recording time. User definable warnings take advantage of super bright, multicolour LEDs placed around the perimeter of the chassis to alert the driver to critical on-screen information.

Display

  • 7.0"TFT LCD panel
  • Display Brightness: 1000 nit
  • Resolution: 800 x 480
  • Onboard photo sensors for automatic brightness control.
  • 16 User configurable multi-colour LED's
  • Display features perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full color text warning messages.
  • 20 layers / screens / pages selected from user configurable templates (screens/instrument cluster designs/layouts), additional configurability supporting team selected graphics, parameter / instrument type and location, and size will be made available with future firmware and PC software releases.

Electrical

  • Supply Voltage: 8-18VDC
  • Typical Power Consumption: 800 mA
  • Single 37 way AS connector.
    • Mating Connector: Deutsch Autosport AS614-35SN

Inputs/Outputs

  • 12 Configurable user sensor inputs
    • 4 Configurable for Pulse, 0-5v, or resistive (0-526 Ω)
    • 8 Configurable for 0-5V
  • Internal 3-axis accelerometer +/-8g
  • Internal battery voltage
  • 1 Dedicated Laptrigger Switch Input
  • 4 Integrated Control Switches
  • 4 Configurable I/O
    • Control Switches
    • Pro Control Outputs - Drive external outputs for warning lights, relay control, etc.
  • GPS Input (RS-232) - Mapping, Laptiming, etc

Communications

  • 1 Configurable CAN port - Up to 1 Mb/s (customer electronics package integration)
  • 1 Configurable RS232 port: GPS
  • 1 Ethernet port: (Configuration, Data Exchange, Firmware Upgrades)
  • 1 USB port: (Data exchange, configuration, Copy and upload, firmware upgrades)

Mechanical

  • Weight: 700g
  • Dimensions - 211mm Wide x 132mm High x 35mm Deep (excluding connector)
  • Carbon Composite Housing

Data Logging

  • Max number of channels: 128
  • Max sample 1,000 Hz
  • Max total samples per second: 8,000
  • Internal Memory: 4GB solid state internal
  • Supplied with DataPro Analysis software
  • Data Security: Pin code prevents data review by unauthorized personnel

Environmental

  • IP65 sealed
  • Operating temperature range: -7°C to +80°C
  • Humidity: 0-100% RH
  • Continuous vibration up to 20g, Shock up to 50g

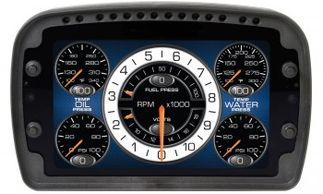

LCD Competition Dash # 6021

STACK LCD COMPETITION DASH LOGGER # ST9918

STACK LCD COMPETITION DASH LOGGER # ST9918

The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7” LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.

Display Features:

  • 7.0” TFT LCD panel, 1000 nit brightness for unmatched daytime and nighttime visibility with 800x480 resolution. Onboard photo sensor for automatic brightness control
  • Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep
  • Carbon Composite Housing
  • Single 37 way autosport (AS) wiring loom connector for ease of installation and removal
  • 12 analog inputs for discrete sensors ideal for parameters not supported on the vehicle communication bus or ECU. Expansion modules available separately for additional input
  • DataPro Designer PC Setup utility
  • Fully user configurable from display via integrated 4 button interface for at track changes. Optional external switch set can be mounted within driver reach for easy access
  • 16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and shift / gear change indication functions
  • Initial release supports 6 layers or screens selected from  user- configurable templates (screens/instrument cluster designs/layouts), additional configurability supporting team selected graphics, parameter/instrument type and location, and size will be made available with future firmware and PC software releases
  • Display features perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full color text warning messages
  • Patented Predictive Lap Timing Display for Driver and Vehicle Development

Inputs:

  • 4 pulse/digital or analog inputs (0-5V, Hz, or resistive)
  • 8 analog inputs (0-5V)
  • 5 external switches / control outputs
  • Internal 3-axis accelerometer +/-6g
  • Internal battery voltage
  • GPS Mapping and Lap Timing

Communications:

  • 2 Configurable RS232 ports
  • Configurable CAN BUS ports
  • Ethernet port for PC comms:(config. & firmware upgrades)
  • 1 USB port: data exchange, configuration,copy/upload, & firmware updates.

Data Recording:

  • 4 GB Onboard Datalogging Memory
  • Record up to 128 channels
  • Sample rates up to 500 Hz (Select inputs 1000 Hz)
  • Includes powerful DataPro Analysis Software

Environmental:

  • IP65 sealed
  • Operating temperature range: 20ºF to 180ºF
  • Humidity: 0-100% RH
  • Continuous vibration up to 20g, Shock up to 50g

Miscellaneous:

  • Boot time / reset time to data screen: 2s
  • Boot time for full graphic application:  8s

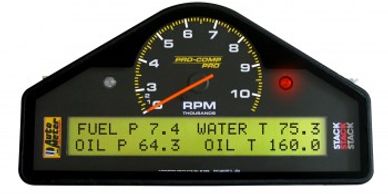

10,500 RPM Dual Range MFDL #ST269603

STACK LCD COMPETITION DASH LOGGER # ST9918

10,500 RPM Dual Range MFDL #ST269603

13 Input MFDL, Blk, 0-10.5k RPM (Incl: Display, sensor & network harness, Driveshaft RPM Sensor Kit, USB DataDrive, Logging (14 channels, 500 Hz sample rate, 2MB), DataPro Drag software & user manual).

AutoMeter recommends contacting our tech agents at (866)248-6357 prior to purchase for any questions or concerns regarding this product, installation, use, or accessories related to this product.

The AutoMeter MFDL display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable to your specifications using multiple pages for your axillary instrumentation needs.


The MFDL can support nearly limitless amount of discrete analog sensors joined with its integrated 3 Axis Accelerometer. Data collection can occur at up to 500 Hz and the internal memory keeps track of your runs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.

Display Features:

  • Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep
  • Carbon Composite Housing
  • Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
  • 13 analog inputs for discrete sensors. Expansion modules available separately for additional inputs
  • DataPro Designer PC Setup utility
  • User configurable from display via external 3 button interface for at track changes.
  • Initial release supports 6 layers or screens selected from  user- configurable layouts
  • Display features digital values for vehicle parameters and configurable text warning messages
  • Patented Predictive Lap Timing Display for Driver and Vehicle Development
  • DVL Compatible

Inputs:

  • 3 pulse/digital or analog inputs
  • 5 analog inputs (0-5V)
  • 3 external switches
  • Internal 3-axis accelerometer +/-6g
  • Internal battery voltage

Communications:

  • 1 USB port: data exchange, configuration, copy/upload, & firmware updates.

Data Recording:

  • 2 MB Onboard Datalogging Memory
  • Sample rates up to 500 Hz
  • Includes powerful DataPro Analysis Software

Environmental:

  • IP67 sealed
  • Operating temperature range: 20ºF to 180ºF
  • Humidity: 0-100% RH
  • Continuous vibration up to 20g, Shock up to 50g

Miscellaneous:

  • Weight: 1.5lbs
  • Motorsports grade wiring harness included

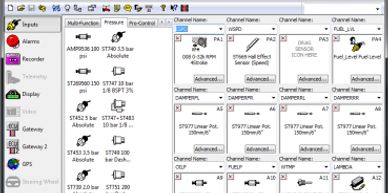

Auto Meter Data Pro Configuration

Basic Setup for Auto Meter Data Acquisition Systems

10,500 RPM Dual Range MFDL #ST269603

https://youtu.be/XPzdA7zPvo8

Auto Meter Data Pro Configuration

Here is a brief tutorial on configuring Data Pro Designer to customize your Auto Meter data acquisition system. For more information, check us out on our site at autometer.com/data-acquisition/configurable-displays.html or call us at 866.248.6356.

Basic Setup for Auto Meter Data Acquisition Systems

Basic Setup for Auto Meter Data Acquisition Systems

Basic Setup for Auto Meter Data Acquisition Systems

Here is a quick rundown on the basic setup of the Auto Meter data acquisition systems. Drag and drop functionality and an intuitive user interface make this one of the easiest systems on the market to customize to your exact needs. Check us out online at autometer.com/data-acquisition/configurable-displays.html or call 866.248.6356.

Software Downloads

Basic Setup for Auto Meter Data Acquisition Systems

Basic Setup for Auto Meter Data Acquisition Systems

DATAPRO SOFTWARE VERSION 7.7.0

DataPro software offers the ability to store and retrieve racing data in a “Racing Log Book”. Import existing paper logbooks into the data base. Runs can be retrieved automatically using the log book search “engine”. Search for past runs by one or up to 18 different categories such as corrected altitude, ET’s, MPH, track location, date, and more. As runs are retrieved, important set-up information can be viewed or graphed. DataPro Analysis Software comes standard with the LCD Competition Dash, Ultra-Lite Pro Data Acquisition Systems and the Pro-Comp Pro MFDL.

Download https://www.autometer.com/data-acquisition/index/softwaredownload

System requirements:  XP service pack 3, Vista, Windows 7, Windows 8, 32 or 64 bit

Looking for Tach Facts Software?  Click here
